Name: Woodpecker Implanter Physiodispenser Fiber Optic
SKU: 9685
Availability: InStock

Woodpecker Implanter Physiodispenser Fiber Optic

Original price was: ₹97,995.00.Current price is: ₹95,995.00.

Physiodispenser with 20:1 contra-angle handpiece

Description:

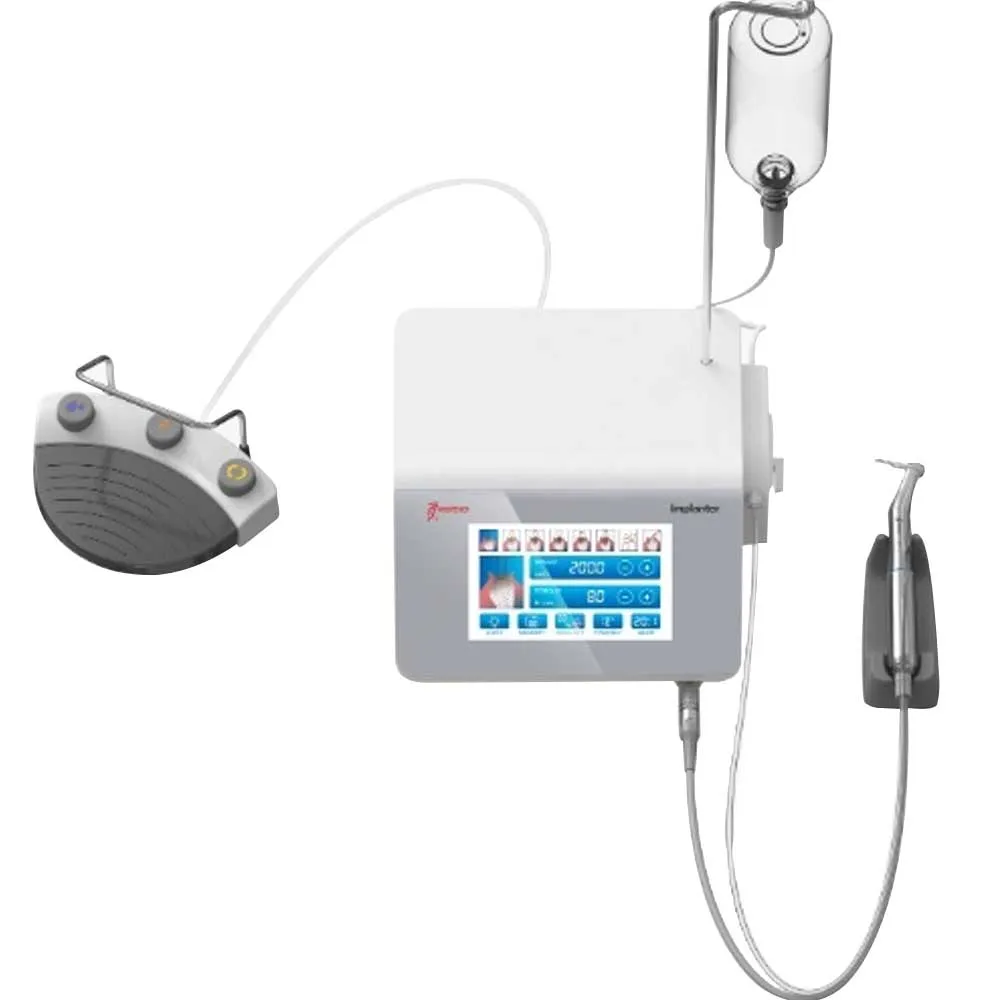

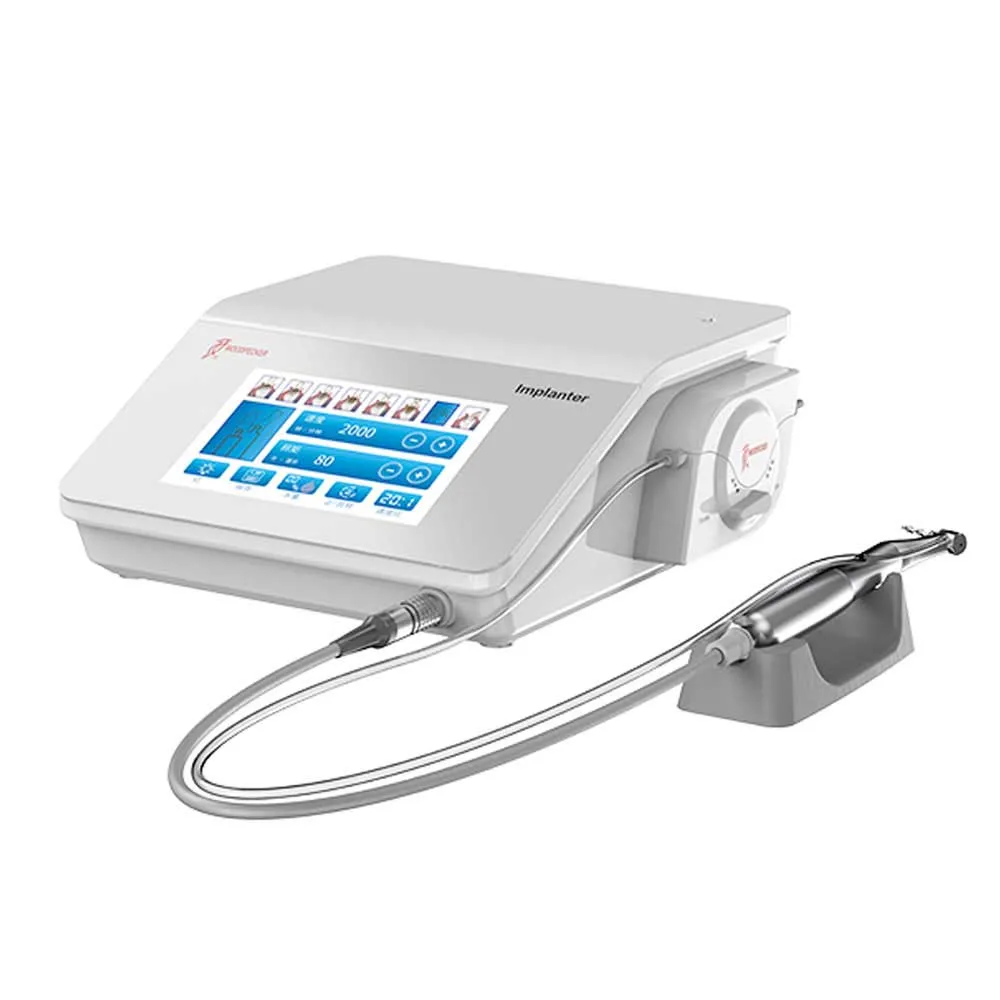

The Woodpecker Implanter Optic is a cutting-edge dental implantation device that combines advanced technology with user-friendly features. It is designed to facilitate precise and efficient implant surgeries, providing dentists with the tools they need for successful procedures. The device is equipped with a lowering tip, specifically designed to prepare the implant placement site, allowing for precise and accurate bed preparation. The inclusion of a large touchscreen enhances the usability of the device by providing a clear and easily navigable interface. The touch screen also offers excellent visualization of the preset values, making it convenient to monitor and adjust parameters during the procedure.

The Implanter Optic boasts an imported powerful Swiss motor, renowned for its reliability and performance. With a motor torque of 6.2Ncm, it ensures a reliable output torque of 80Ncm, providing the necessary strength for successful implantation procedures.

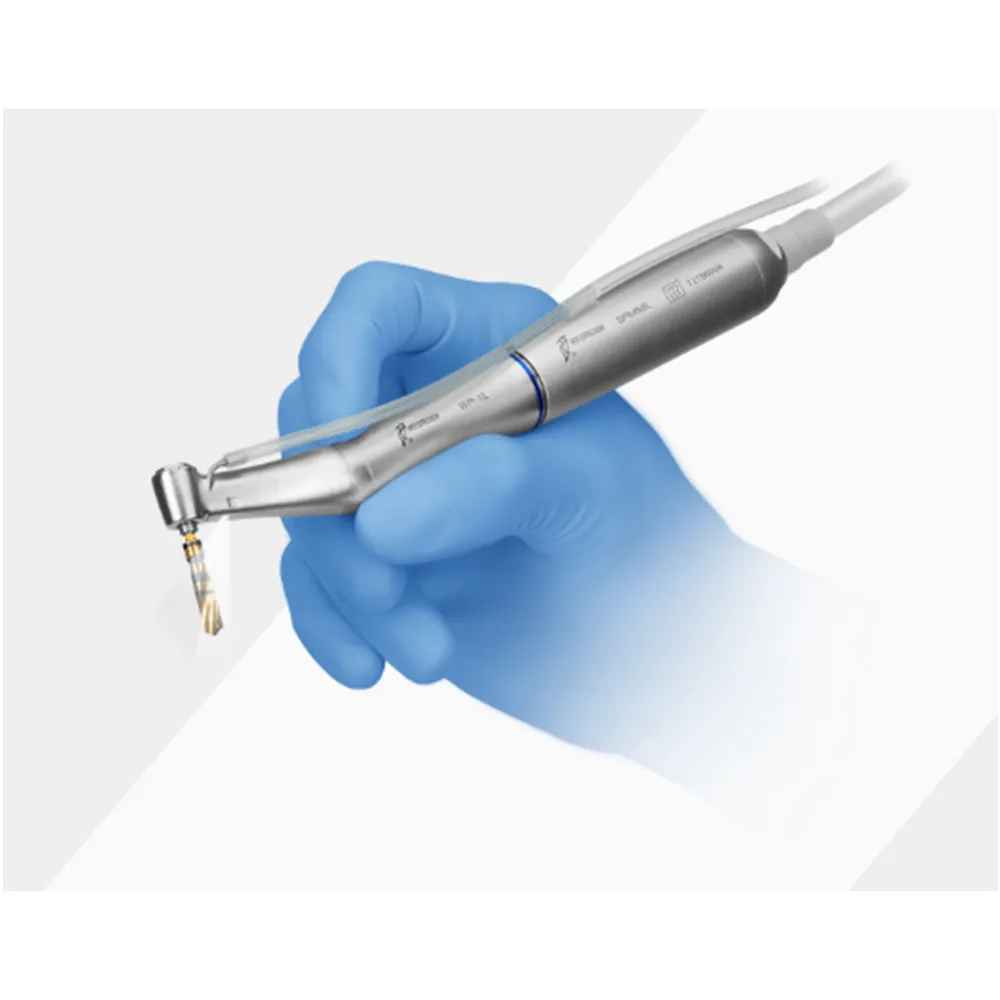

Both the motor and cable can be autoclaved, ensuring proper sterilization and maintaining a high level of hygiene. Additionally, the micro motor is lightweight, facilitating flexible operation and minimizing user fatigue. The device is accompanied by a flexible multi-function foot pedal, allowing for aseptic operation while freeing up the user’s hands for optimal maneuverability. This foot pedal enhances the overall workflow and contributes to a more efficient and seamless surgical experience. To facilitate easy operation and ensure cleanliness, the Implanter Optic features a color touch screen with a glass surface. The touch screen provides an intuitive control panel, simplifying device management and enabling seamless navigation. The glass surface is easy to clean, ensuring a hygienic treatment environment. By implementing wiping disinfection, the device ensures the safety and sterility of the treatment area.

Woodpecker has prioritized balance in the design of the Implanter Optic, ensuring a comfortable and secure grip during complex surgeries. By achieving a balance between the weight of the contra-angle and motor, the device minimizes hand fatigue and maximizes control and precision.

Features:

Intuitive user interface
Motor with precision and strength
Strong & stable contra-angle

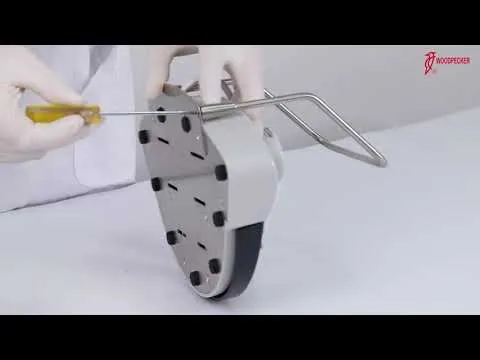

Flexible multi-function foot pedal
Color touch screen with glass surface

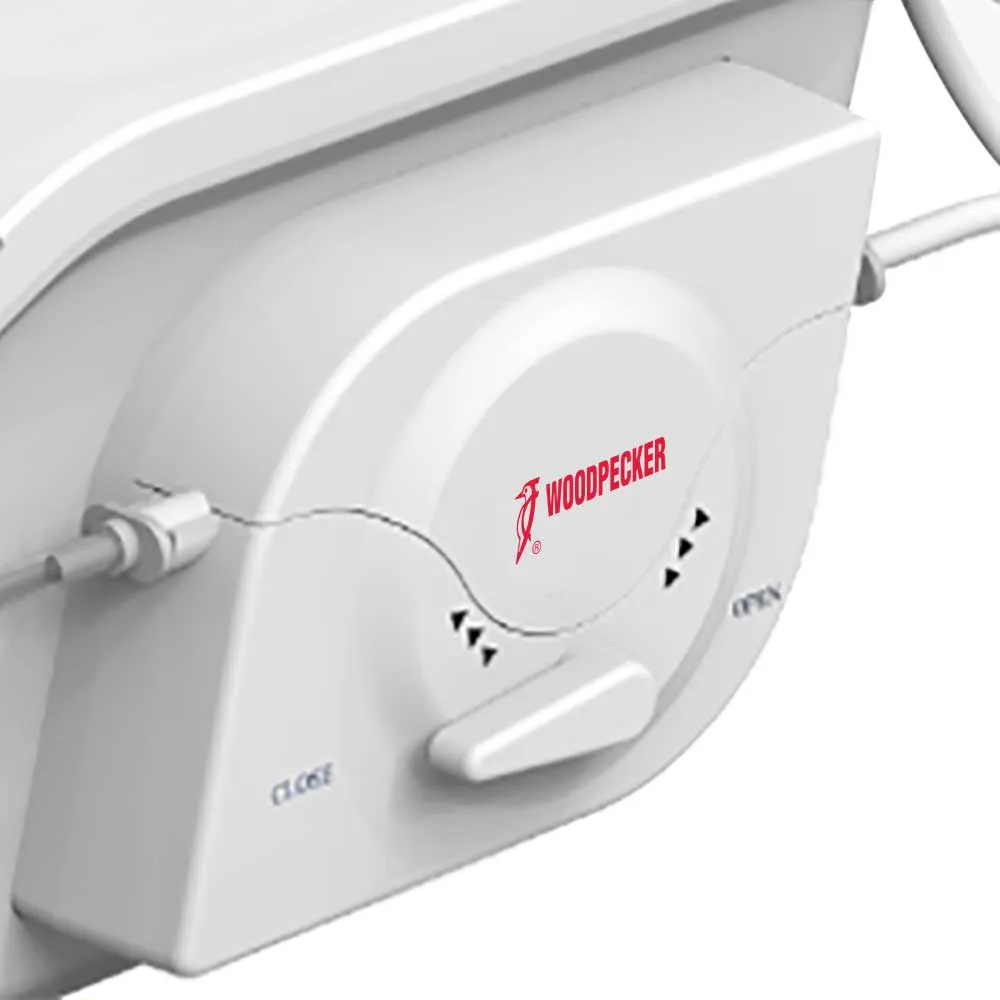

Mute peristaltic pump
Perfect balance

Key Specifications:

Rotation Speed Range – 300 – 40000rpm
Torque Range/Gear 20:1 – 5N.cm- 80Ncm
Max Pump Output – 110ml/min
Main Unit Dimensions – φ23.4mm*L91mm
Motor Weight – 140g
Power Supply – Ac220v 50/60Hz
Device for intermittent operation: 3 min ON,10 min OFF
Power supply voltage: 200-240V~
Power supply frequency: 50/60Hz
Software version: Implant-V1
Input power: 150VA
Fuses: 2×T1.6AL 250V
Applied parts: Contra-angle handpiece
Maximum Temperature: 41.8℃
Maximum water volume: 135ml/min
Dimension: 276mm*267mm*110mm
Environment temperature: +5~40℃
Relative humidity: 30%~75%
Atmosphere pressure:70kPa~106kPa
Device case material: PC+ABS
Handpiece material: brass

Storage: Store in a clean, dry, ventilated, non-corrosive atmosphere with a relative humidity of 10% to 93%, an atmospheric pressure of 70KPa to 106KPa, and a temperature of -20 °C to +55 °C;
